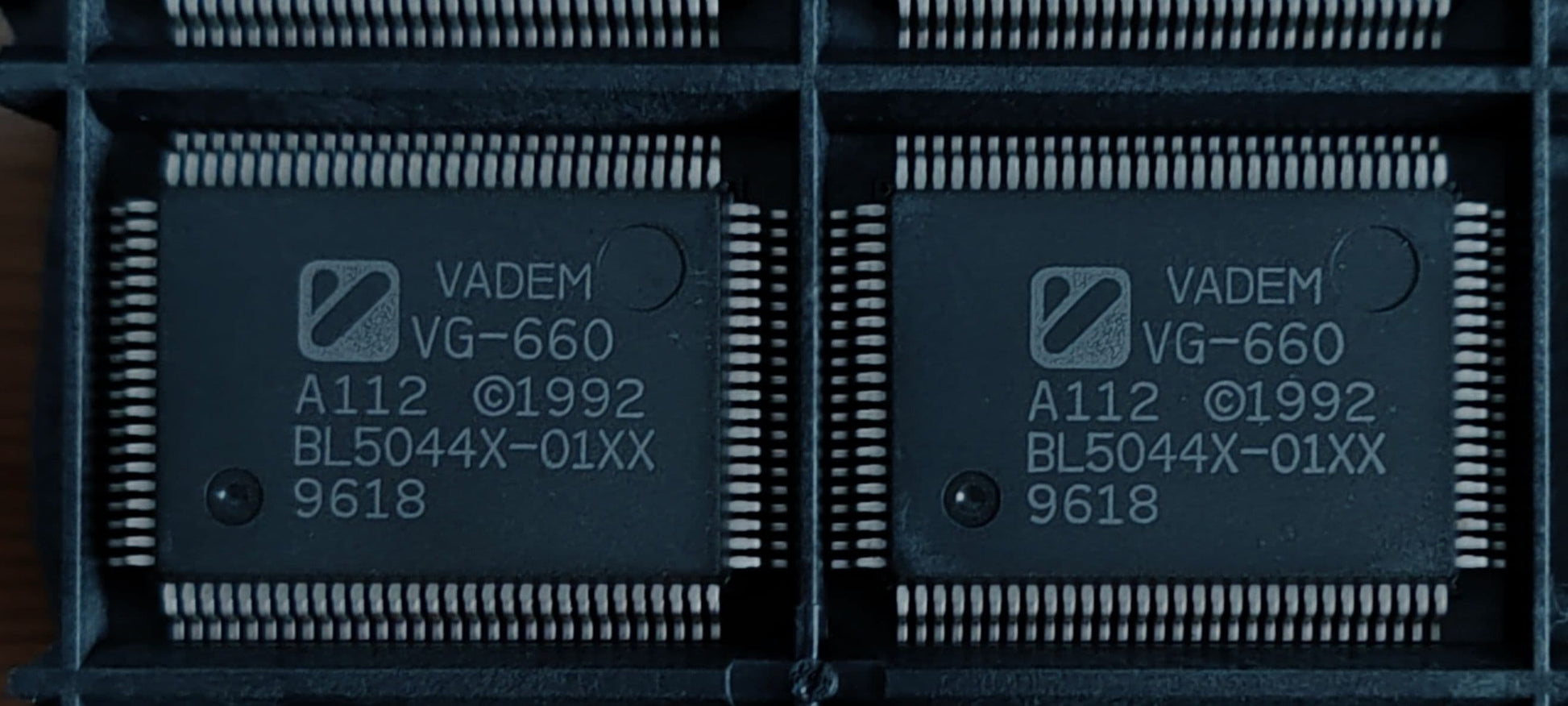

VADEM VG-660 VGA LCD/CRT 3.3V/5V Controller IC

VADEM VG-660 is a high-performance VGA LCD/CRT controller IC engineered for seamless integration into embedded systems, industrial PCs, legacy computing platforms, and custom display applications. The VG-660 VGA controller supports both LCD and CRT output, delivering flexibility for diverse system architectures.

Operating with either 5V or 3.3V supply rails, the VG-660 handles frequencies up to 30 MHz, enabling crisp video signal processing in both modern and retro hardware designs. The VG-660 is designed for reliability, with a maximum active supply current of 30mA, and ultra-low power Sleep (1mA) and Suspend (100μA) modes.

With a maximum input/output capacitance of 10pF, the VG-660 maintains stable high-speed signal handling. Its wide operating temperature range (0°C to 70°C) and extended storage capability (−40°C to +125°C) make the VG-660 ideal for rugged or temperature-variable environments. Whether creating a retro-compatible graphics interface or a low-power embedded video system, the VG-660 IC is a proven, compact, and efficient solution.

Key Specs IC Type: VGA LCD/CRT Controller Supply Voltage (5V mode): 4.75V to 5.25V Supply Voltage (3.3V mode): 3.15V to 3.45V Operating Frequency: Up to 30 MHz Input/Output Capacitance: Max 10pF @ 1MHz Supply Current (Active): Max 30mA Supply Current (Sleep): Max 1mA Supply Current (Suspend): Max 100μA Operating Temperature: 0°C to 70°C Storage Temperature: −40°C to +125°C Voltage Tolerance (Any Pin): −0.5V to Vcc + 0.5V
