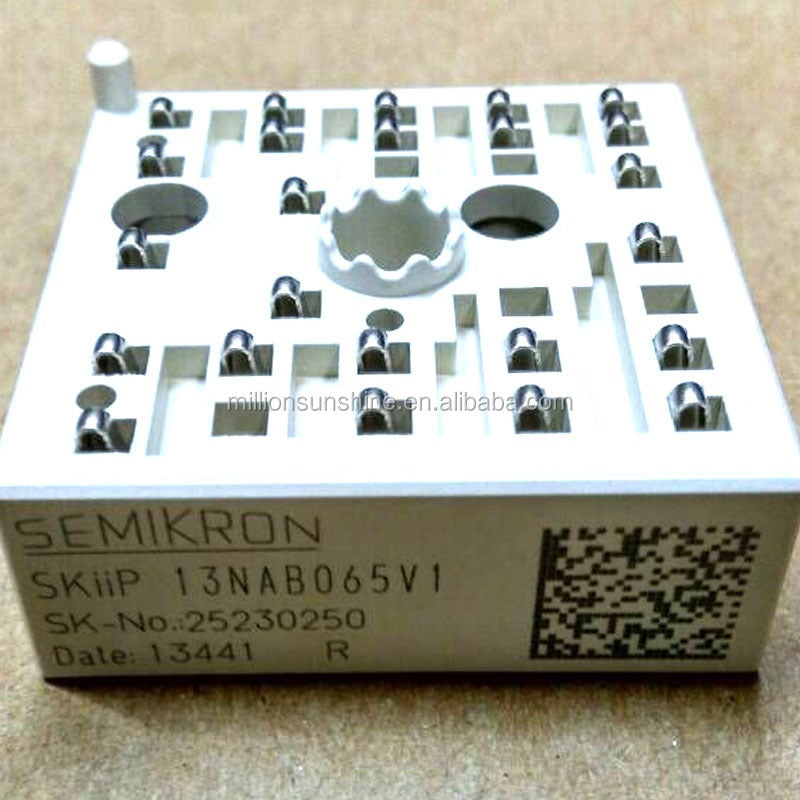

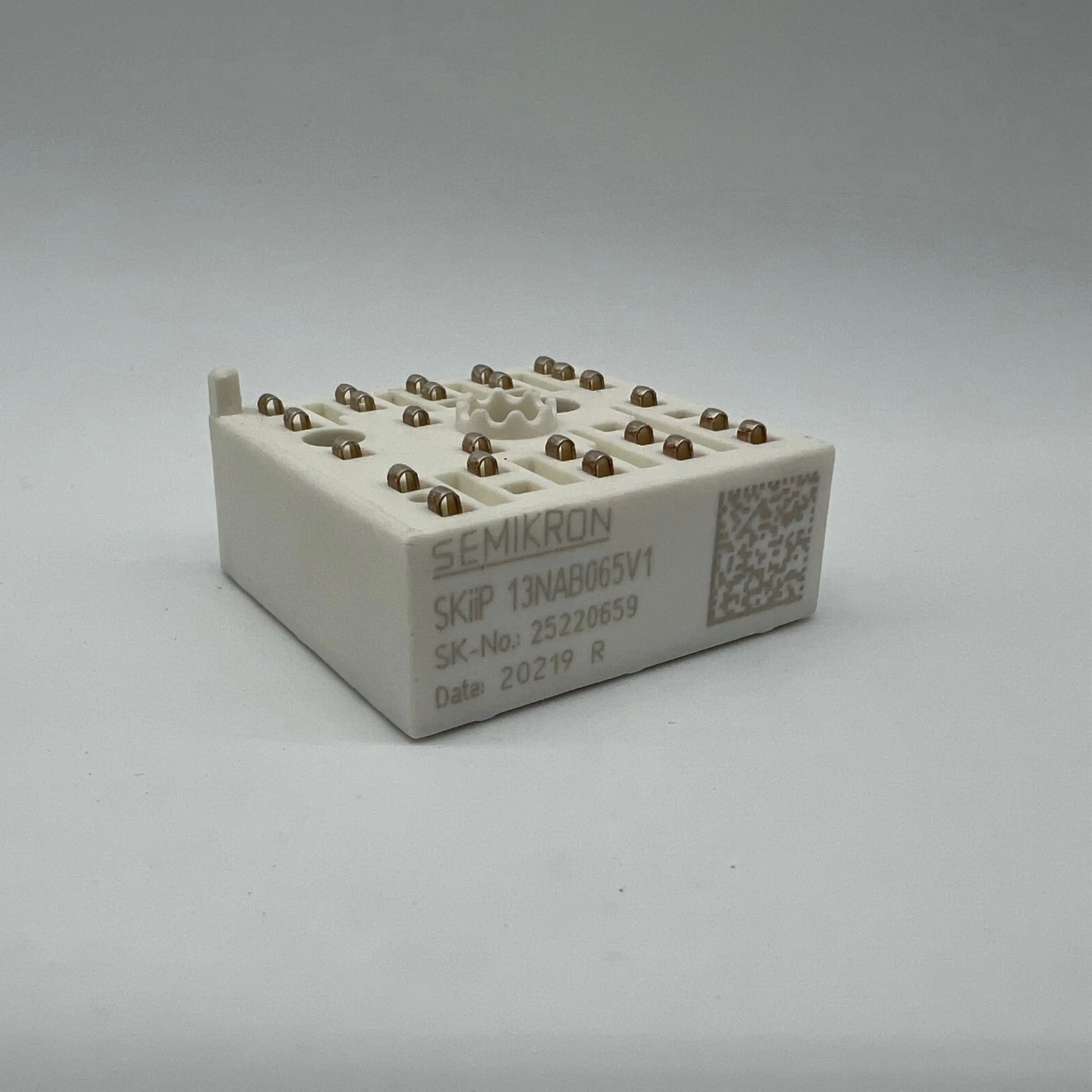

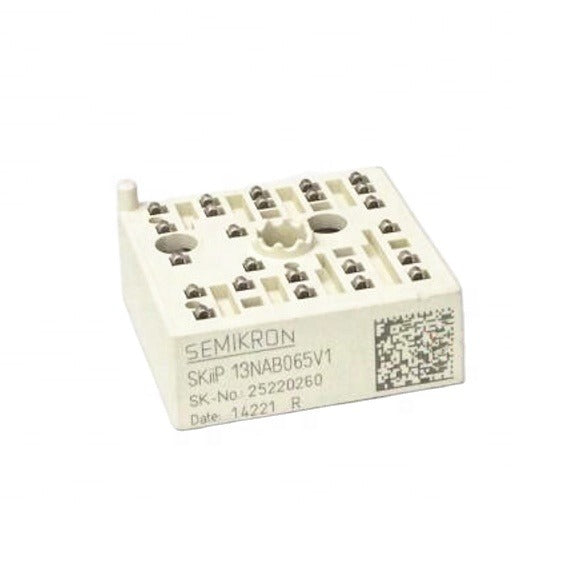

SKIIP13NAB065V1 — MiniSKiiP® 1 converter / inverter / brake module
The SKIIP13NAB065V1 is a MiniSKiiP® 1 module that combines a three-phase bridge rectifier, brake chopper and three-phase bridge inverter in a single package. It is intended for use in motor drives, UPS systems, inverters and photovoltaic converters where an integrated power stage simplifies assembly and layout.
Rated for a 600 V collector-emitter blocking voltage and a nominal continuous collector current of 24 A, the module’s electrical data (including gate-emitter limits and switching/thermal characteristics) are given in the manufacturer datasheet and should be used to size the device for a specific system and cooling arrangement. The datasheet specifies the gate-emitter voltage limits and typical switching energy curves needed to evaluate switching losses and gate drive requirements.
Mechanical and handling details—package type (MiniSKiiP® 1), recommended electrical mounting (press-fit) and isolation and thermal data—are provided in the datasheet and in distributor datasheets. The document also notes ESD sensitivity and gives thermal impedance and mounting torque figures required for correct installation and reliable operation. Use the datasheet figures when planning thermal management, PCB layout and mechanical fixation.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | SEMIKRON (MiniSKiiP® family) |
| Part number | SKIIP13NAB065V1 |
| Topology | 3-phase bridge rectifier + brake chopper + 3-phase bridge inverter |
| Maximum collector-emitter voltage (V_CES) | 600 V |
| Nominal continuous collector current (I_C) | 24 A |
| Pulsed collector current (single pulse, datasheet conditions) | See datasheet for pulse ratings |
| Gate-emitter voltage (V_GE, max) | ±20 V (see datasheet for limits) |
| Package / mounting | MiniSKiiP® 1 — press-fit electrical mounting |
| Isolation test voltage (typical) | 2.5 kV (refer to datasheet) |
| Typical weight | ~57 g (manufacturer / distributor data) |
| Main applications | Motor drives, UPS, inverters, photovoltaic converters |
| Notes | ESD sensitive; follow datasheet handling and mounting instructions |
For more detailed information, please refer to the SEMIKRON datasheet
