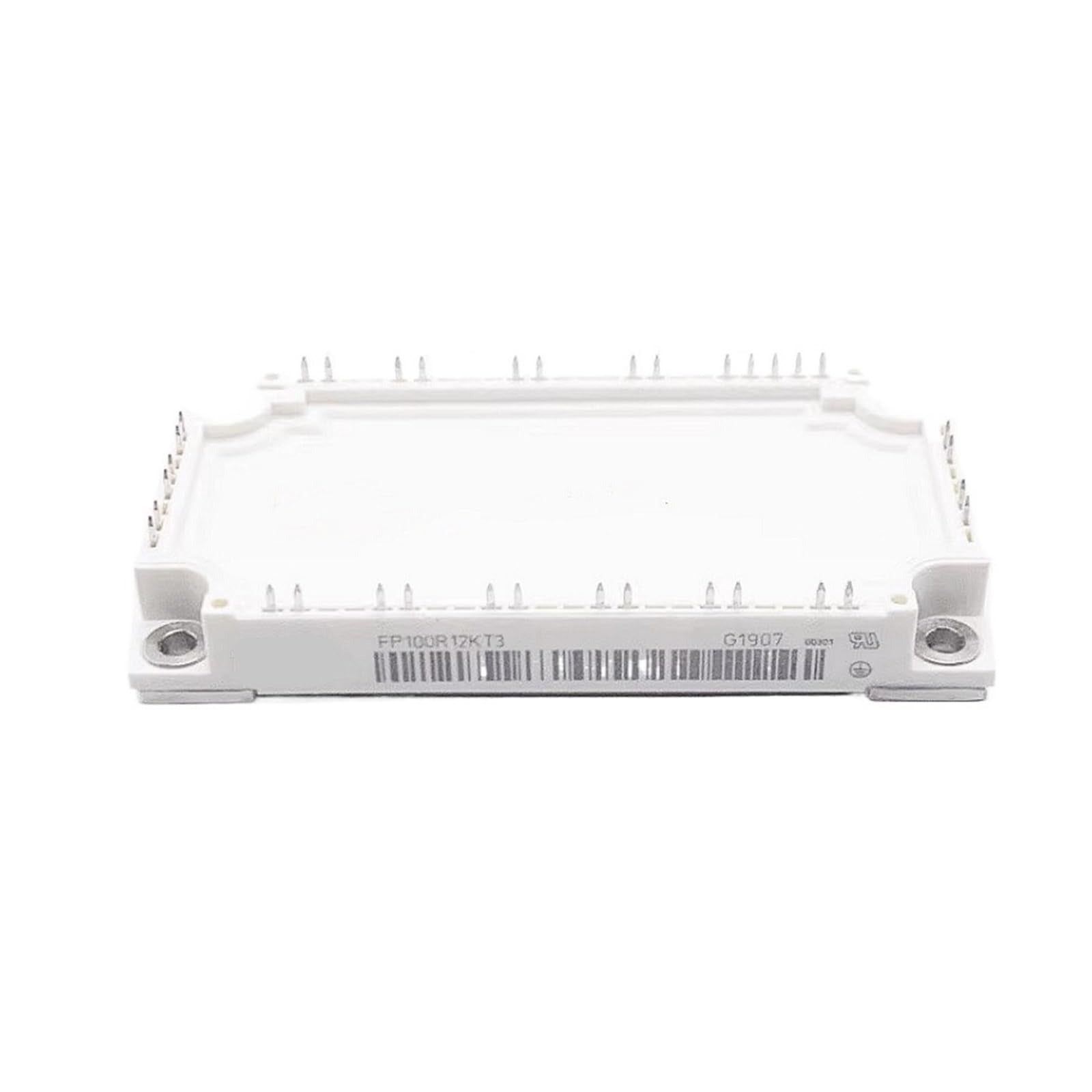

Infineon FP100R12KT3 IGBT Module – 1200V, 100A Power Module
The Infineon FP100R12KT3 IGBT module is a 1200 V, 100 A device designed for switching applications in industrial and commercial power electronics. It supports mid- to high-power conversion with stable performance and efficient thermal handling.
The module integrates a copper baseplate with Al₂O₃ insulation for effective heat dissipation and electrical isolation. With a case-to-heatsink thermal resistance of 0.02 K/W and low stray inductance of about 60 nH, it enables efficient operation in inverter and drive systems. An isolation test voltage of 2.5 kV RMS ensures safe operation across a wide range of applications.
The FP100R12KT3 is applied in three-phase motor inverters, uninterruptible power supplies (UPS), renewable energy converters, and industrial drive circuits. Its construction and specifications support consistent operation in environments requiring durable and efficient power modules.
Key Specs – Infineon FP100R12KT3
| Specification | Value |
|---|---|
| Collector–Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Continuous Collector Current (I<sub>C</sub>) | 100 A |
| Isolation Test Voltage (V<sub>iso</sub>) | 2.5 kV RMS (1 min) |
| Baseplate Material | Copper with Al₂O₃ insulation |
| Thermal Resistance (R<sub>th</sub>) | ~0.02 K/W (case-to-heatsink) |
| Stray Inductance | Approx. 60 nH |
| Storage Temperature Range | –40 °C to +125 °C |
| Typical Applications | Motor drives, UPS, renewable energy, industrial inverters |
| Weight | ~180 g |
