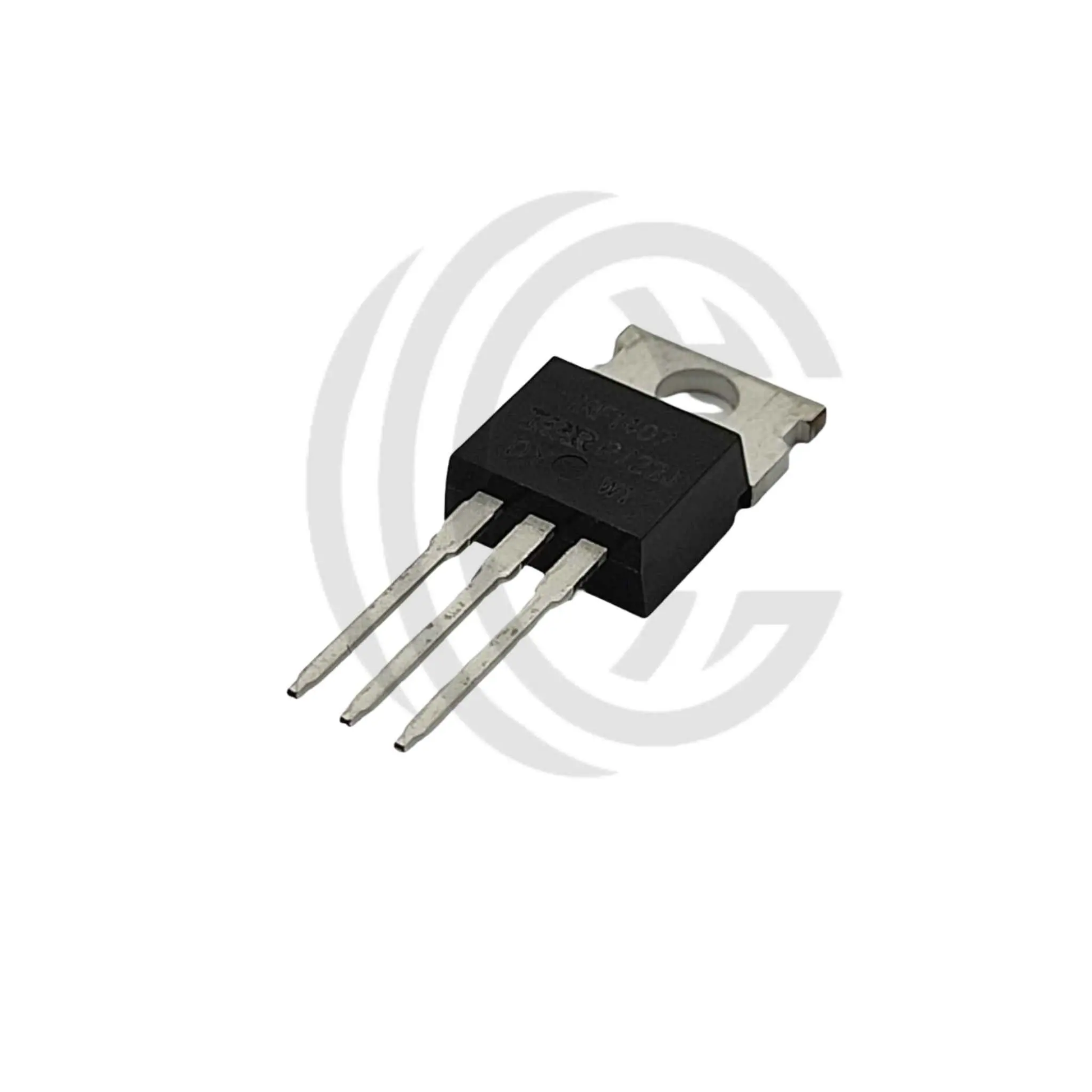

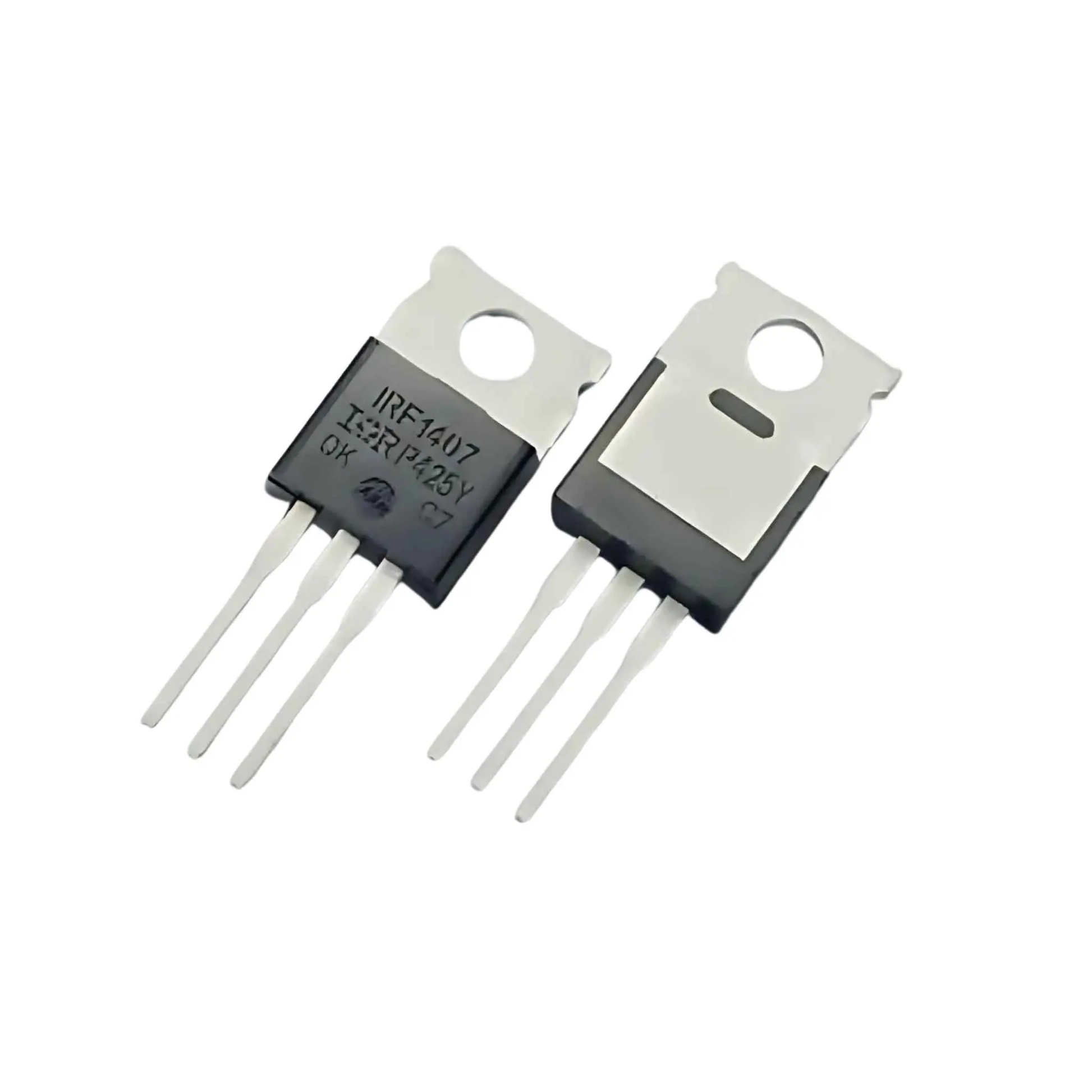

IRF1407 75V 130A N-Channel MOSFET – TO-220AB Package
IRF1407 is a powerful N-channel Power MOSFET designed for high-current switching applications. Rated at 75V and 130A, this transistor features low on-resistance of just 7.8mΩ, making it ideal for efficient energy transfer in power management systems. It is widely used in automotive electronics, motor control circuits, and industrial power supplies where fast switching and high current handling are required.
Built with a TO-220AB package, the IRF1407 offers strong thermal performance and supports operation up to 175°C. With a total gate charge of 160nC and power dissipation of 330W, this device ensures stable and reliable switching in harsh environments. Its ±20V gate-to-source voltage rating makes it suitable for robust designs in renewable energy, UPS systems, and high-frequency converters.
Engineers and procurement professionals in Pakistan prefer IRF1407 for its durability, performance, and compatibility with high-efficiency circuits. This MOSFET is commonly used in commercial-grade inverters, battery-powered tools, and automotive power systems.
Key Specs Voltage Rating: 75V Current Rating: 130A Continuous Type: N-Channel On-Resistance: 7.8mΩ Gate Charge: 160nC Power Dissipation: 330W Operating Temperature: Up to 175°C Package: TO-220AB Applications: Motor Control, Automotive Electronics, Power Supply Circuits, UPS Systems
