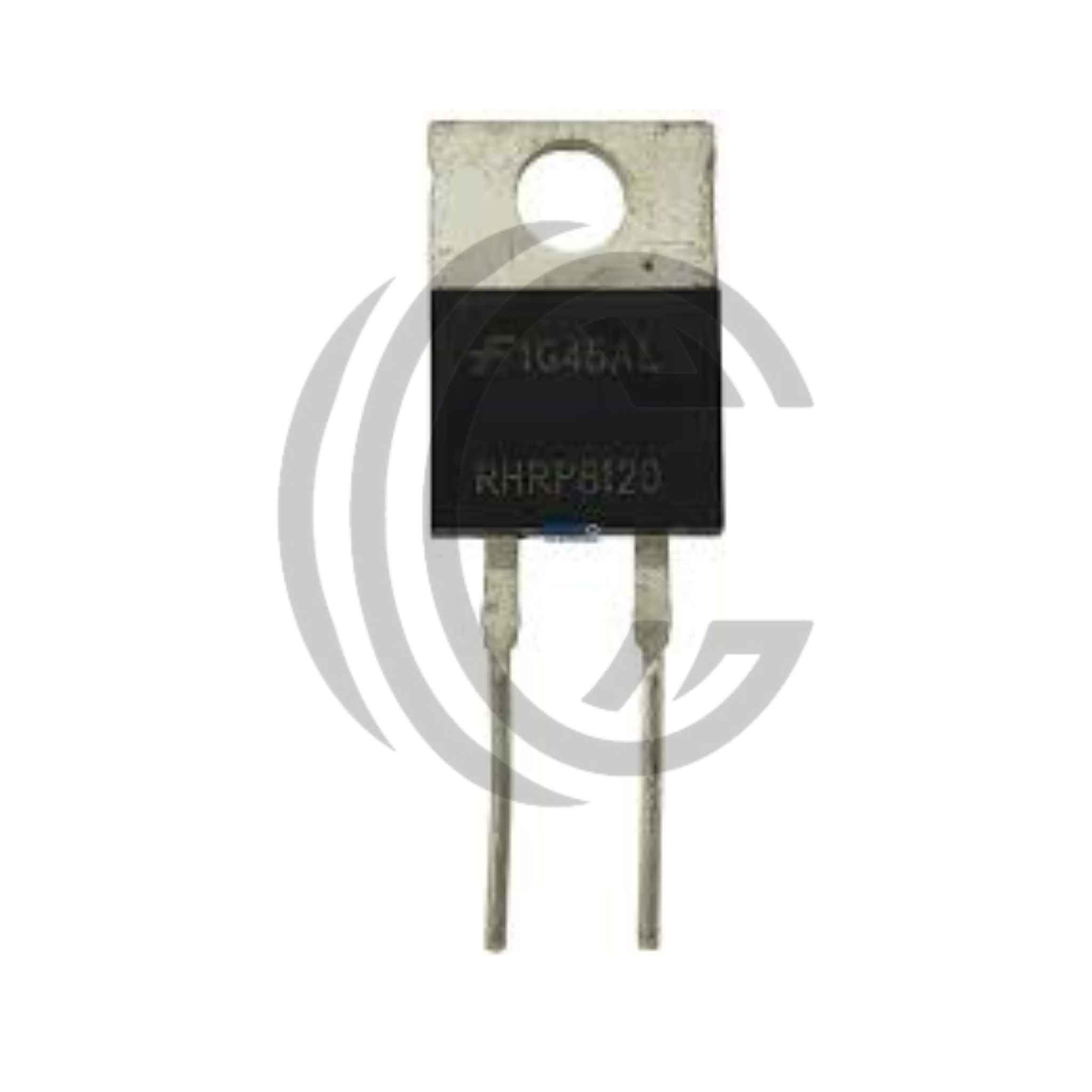

RHRP8120 Hyperfast Rectifier Diode – 1200V, 8A, TO-220AC Package
The RHRP8120 Hyperfast Rectifier Diode delivers ultra-fast recovery, 1200V reverse voltage capability, and 8A forward current—making it a powerful solution for high-frequency switching power supplies, solar inverters, and industrial control systems. Designed for speed and efficiency, it minimizes switching losses in demanding applications that require reliable high-voltage rectification. Housed in a compact TO-220AC package, it ensures thermal stability and long-term durability under continuous operation.
Built for professional-grade performance, the RHRP8120 offers low forward voltage drop and rapid recovery time, reducing energy loss and improving power efficiency in rectification circuits. Whether you’re designing power conversion units, motor drives, or telecom power systems, this diode supports clean switching and consistent operation across a wide temperature range.
Key Specs: – Reverse Voltage: 1200V – Forward Current: 8A – Recovery Time: Hyperfast – Package: TO-220AC – Low forward voltage drop
Applications: Ideal for solar inverters, power factor correction circuits, SMPS, UPS systems, motor drives, and high-efficiency industrial power supplies. Its speed and stability make it a preferred component in renewable energy and telecom equipment requiring low-loss rectification.
