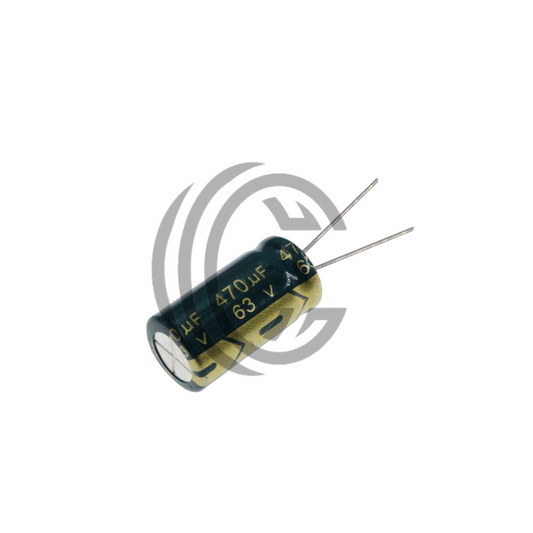

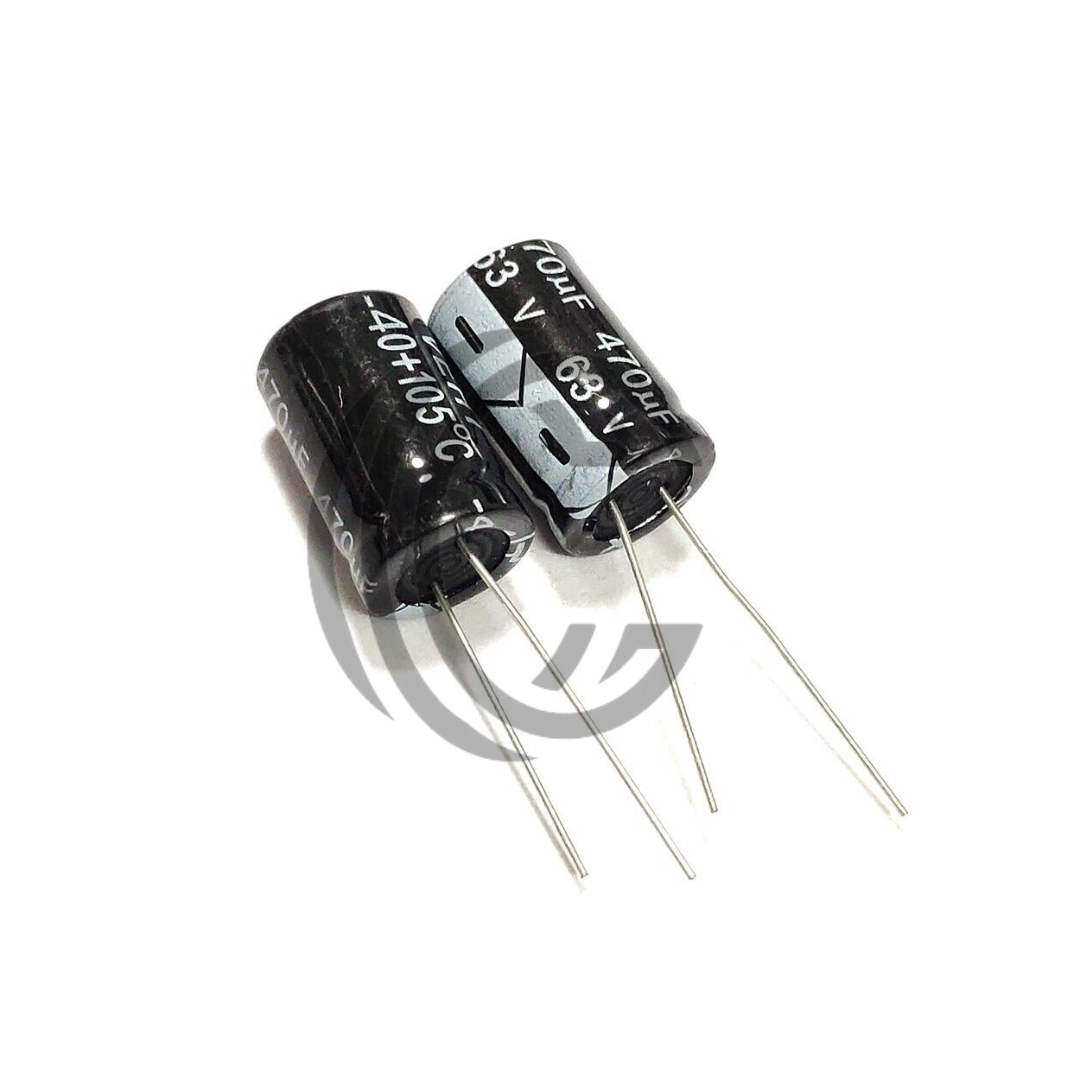

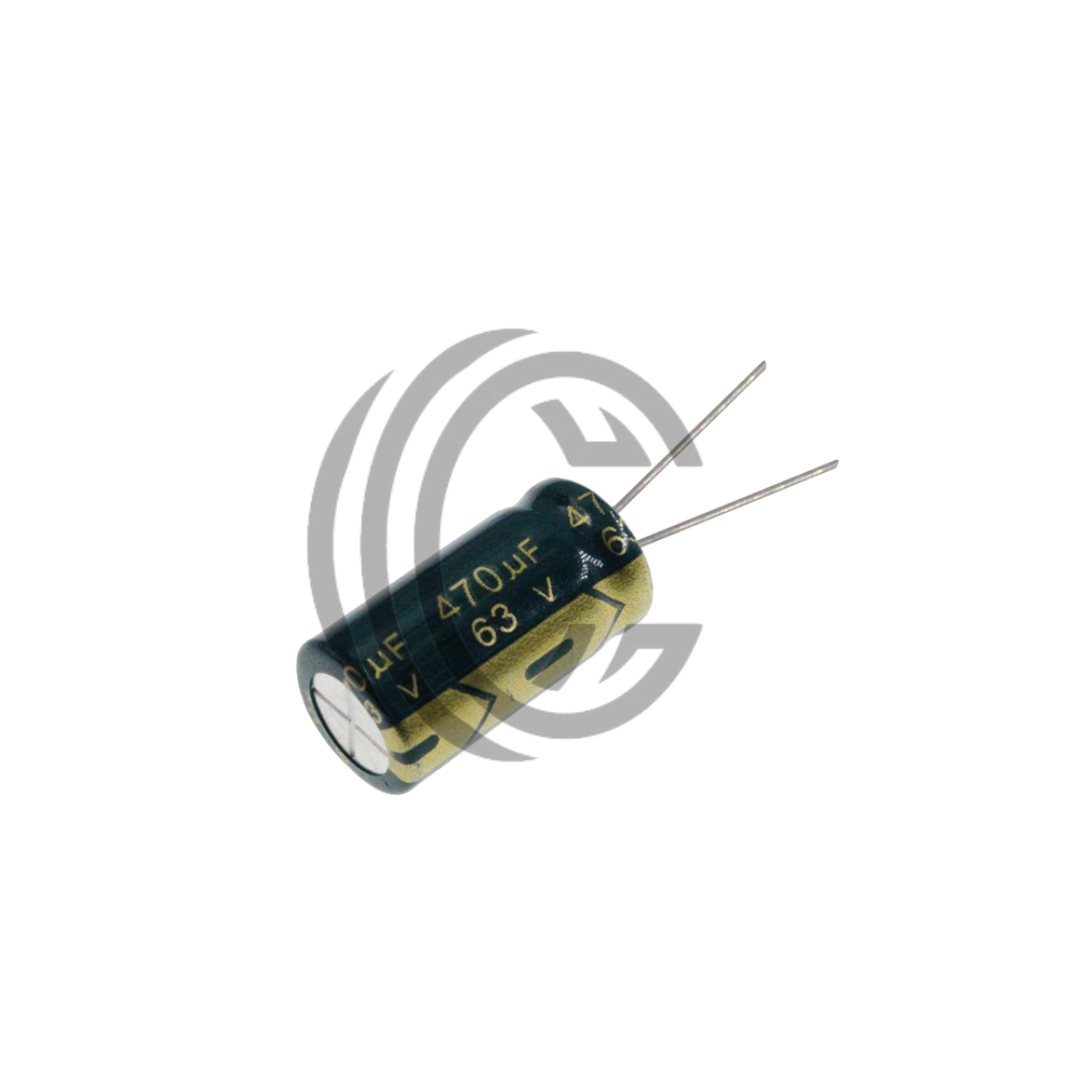

470uF 63V Electrolytic Capacitor – Radial Aluminum, Low ESR, 13x20mm
470uF 63V capacitor is a radial electrolytic capacitor designed for power supply filtering, DC smoothing, and signal coupling tasks. This 470uF 63V electrolytic capacitor offers stable energy storage and supports high ripple current applications in various electronic systems.
The 470uF 63V capacitor features a radial lead layout for through-hole mounting. Its compact size of 13mm × 20mm fits tight PCB designs. With a ±20% tolerance, the capacitor maintains consistent capacitance across standard operating ranges.
This aluminum electrolytic capacitor operates from -40°C to +105°C. It supports a rated voltage of 63V and has a load life of 2000 hours at maximum temperature. The radial capacitor construction ensures low ESR and reliable thermal performance.
Typical uses include power supply circuits, DC filters, decoupling networks, and audio signal paths. The 470uF 63V capacitor is commonly found in automotive electronics, industrial automation, and general-purpose circuit boards.
Key Specs Capacitance: 470uF Voltage Rating: 63V DC Capacitor Type: Aluminum Electrolytic (Radial) Tolerance: ±20% Ripple Current: High ESR: Low Size: 13mm Diameter × 20mm Height Operating Temperature: -40°C to +105°C Load Life: 2000 Hours @ 105°C Polarity: Polarized (Radial Leads) Applications: DC Filtering, Power Supplies, Audio Circuits, Industrial Electronics, Automotive Systems Compliance: RoHS Compliant
